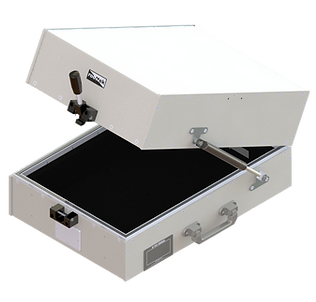

RF Shielded enclosure RT-2125
RT-2125 RF Test Enclosure supports broad band testing frequency and provides optimal testing condition to test mobile device.
◆ Outstanding durability and simple structure
◆ Convenient use and maintenance
◆ Supports an I/O interface panel to apply various interface (IB-series)
◆ High performance RF absorber
◆ High shielding effectiveness using double layer gasket structure.
◆ Fixture mounting holes in the Bottom Plate,
l Size information
1. Outer size(Closed): 369(W) x 526(D) x 242(H)mm
2. Outer size(Opened): 369(W) x 585(D) x 622(H)mm
3. Inner size(Closed): 258(W) x 388(D) x 163(H)mm
RT-2125 RF Test Enclosure 는 무선통신 단말기 측정을 위한 최적의 환경을 제공하도록 구성 되어있으며, 아래 와 같은 특징을 가지고 있다.
◆ Simple 한 구성
◆ 편리한 사용법 및 유지보수
◆ I/O Panel 적용으로 인한 다양한 I/O Port 사용 가능
◆ 고성능 RF Absorber 적용
◆ 2중 차폐 구조 적용
◆ Fixture 부착용 Mounting hole 적용
